True® UTV-SBI-CM UTV Dual Battery Connect & Monitor Kit
$77.50
Item number: UTV-SBI-CM
Suggested retail price $143.95

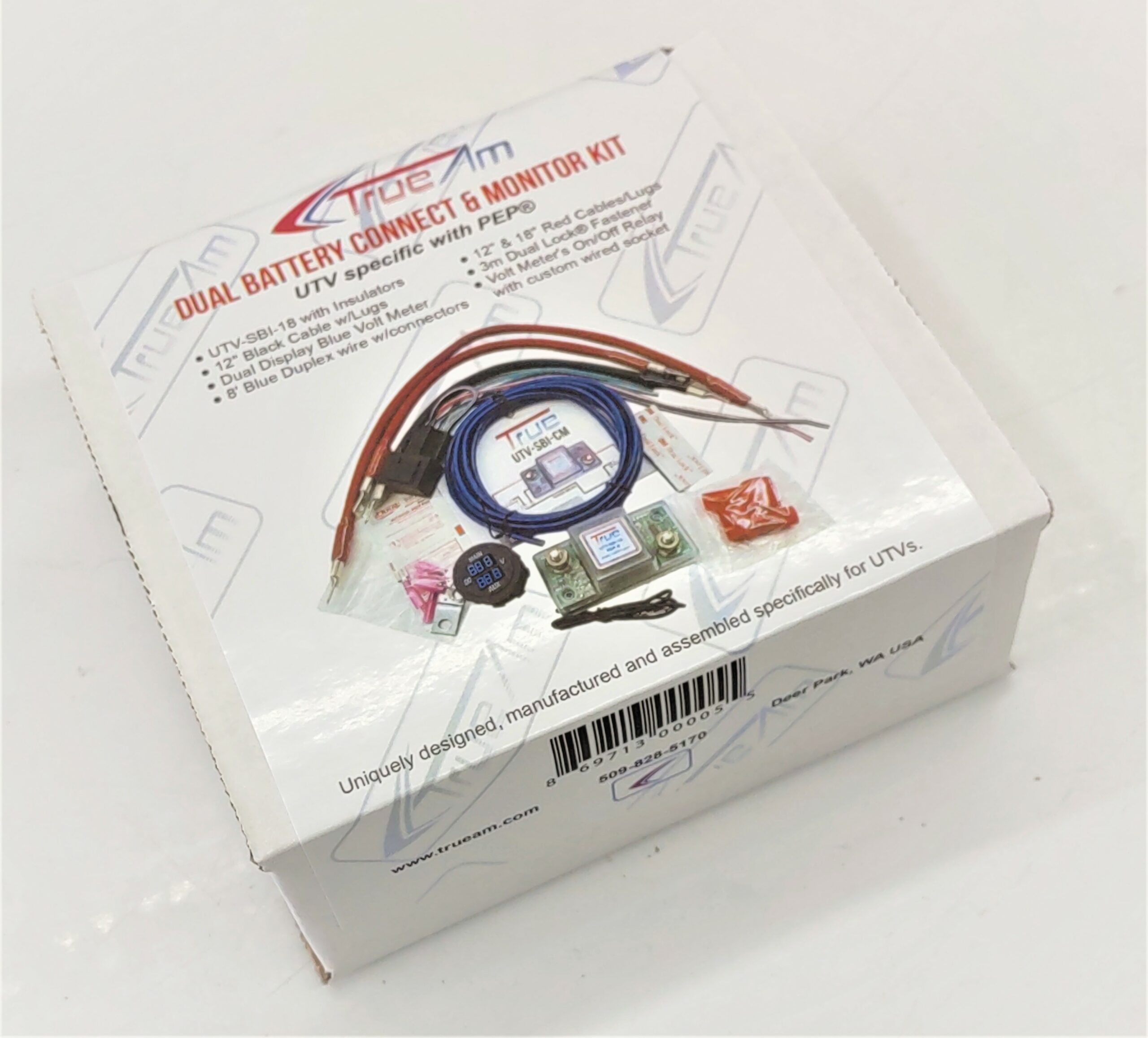

The NEW UTV-SBI-CM kit includes:
- 1-UTV-SBI-18 with insulators and 3M Dual Lock™
- 1-12 inch #6 black cable with 6mm (1/4″) lugs
- 1-12 inch #6 red (primary) cable with 6mm (1/4″) lugs
- 1-18 inch #6 red (secondary) cable with 6mm (1/4″) lugs
- NOW featuring a NEW 36mm Single Meter Dual Display blue LED volt meter
- On/off relay and socket
- 8ft duplex wire with connectors for meters
- Click to download instructions
- Click to download trouble shooting guide
Description
[woocommerce_one_page_checkout template="product-table" product_ids="918"]
Users enjoy its simple installation, dependable operation, and ability to keep several power-hungry devices running without jeopardizing the vehicle's main electrical system. This is an excellent option for those seeking reliable and long-lasting battery backup in cars.
Prevents Being Stranded
One of the biggest risks with UTVs (or any vehicle) is running accessories (lights, audio, winches, etc.) and accidentally draining the starter battery so much that it won’t crank. The isolator in this kit ensures the starter battery is protected, so you can still start the UTV even after using accessories. This gives peace of mind, especially in remote trails or campsites.
Supports Expanded Accessory Use
As people add more accessories — upgraded lighting, stereo systems, GPS/radios, fridges — the electrical demand goes up. A normal single battery often isn’t enough to handle all that reliably. This dual-battery + monitor setup allows use of those accessories without compromising the starting battery or electrical system.
Real-Time Monitoring
With voltage gauges/monitoring, you can see what both batteries are doing (how charged they are, whether they’re being charged properly). That lets you catch problems early (voltage sag, poor charging, dying battery) rather than discovering them when you try to start or use something and find the battery dead.
Automatic Protection Without Manual Intervention
The system uses an isolator that responds to voltage — connecting the auxiliary battery to receive charging only when it’s safe (voltage high enough), then isolating when voltage drops. So once installed properly, the user doesn’t have to remember to flick switches or manually protect the starter battery.
Prolonged Battery Life and Cost Savings
Batteries degrade faster when they are deeply discharged or exposed to frequent high cycles. By isolating the batteries and distributing load properly, the kit can help avoid those deep discharges on the starter battery. Over time, that means fewer battery replacements, less maintenance, and lower overall cost.
“The True® Lithium Kit was a game-changer for my 4WD setup. Easy to install and rock-solid performance on long trips.”
— Mark T., Minnesota
“Installed it in my boat—no voltage drop, no drama. The waterproof cabling and smart relay are top-notch.”
— William L., Utah
“Perfect for my caravan. The automatic battery management saves me time and worry—highly recommended.”
— Dave R., Colorado
Amazon Rating
- Automatic Battery Management
Designed specifically for stator-based charging systems, it protects the starting battery while efficiently charging the accessory battery. - Single Meter Dual Display (SMDD)

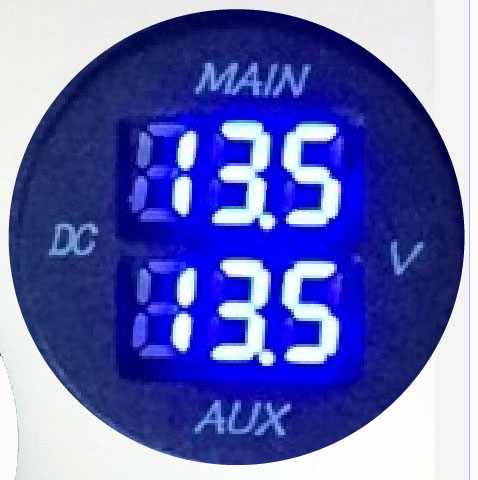

A compact LED voltmeter that shows both battery voltages at once, simplifying monitoring and saving dashboard space. - Automatic Voltage-Sensitive Relay (VSR)
Seamlessly connects and disconnects the batteries based on voltage thresholds, ensuring optimal charge distribution. - LED Status Indicators
Provide real-time feedback on battery connection status and charging activity. - Compact, Weatherproof Design
Built to withstand rugged off-road environments and harsh weather conditions.
What does the LED indicator mean?
- LED on = both batteries are connected (charging together).
- LED off = batteries are isolated.
- It may stay on briefly after engine shutdown — this is normal.
- To confirm it’s working, turn off the engine and switch on headlights; the LED should turn off once voltage drops.
Why does the blue LED stay on while using a trickle charger?
This is normal. When the batteries are being charged and both reach connection voltage, the isolator engages, causing the LED to remain lit.
Which battery should my accessories connect to?
Connect your accessories — such as lights, stereos, or winches — to the secondary (auxiliary) battery. This ensures your main battery remains fully charged for starting your vehicle.
How durable is the UTV-SBI-CM?
The kit is built for off-road and powersport environments. With proper installation and wiring, users commonly see years of reliable use even under vibration, moisture, and dust exposure.
Can I charge both batteries from solar panels or the alternator?
Yes. The isolator works based on voltage levels, so whether charging from your alternator, solar system, or another source, it will connect both batteries whenever charging voltage is high enough.

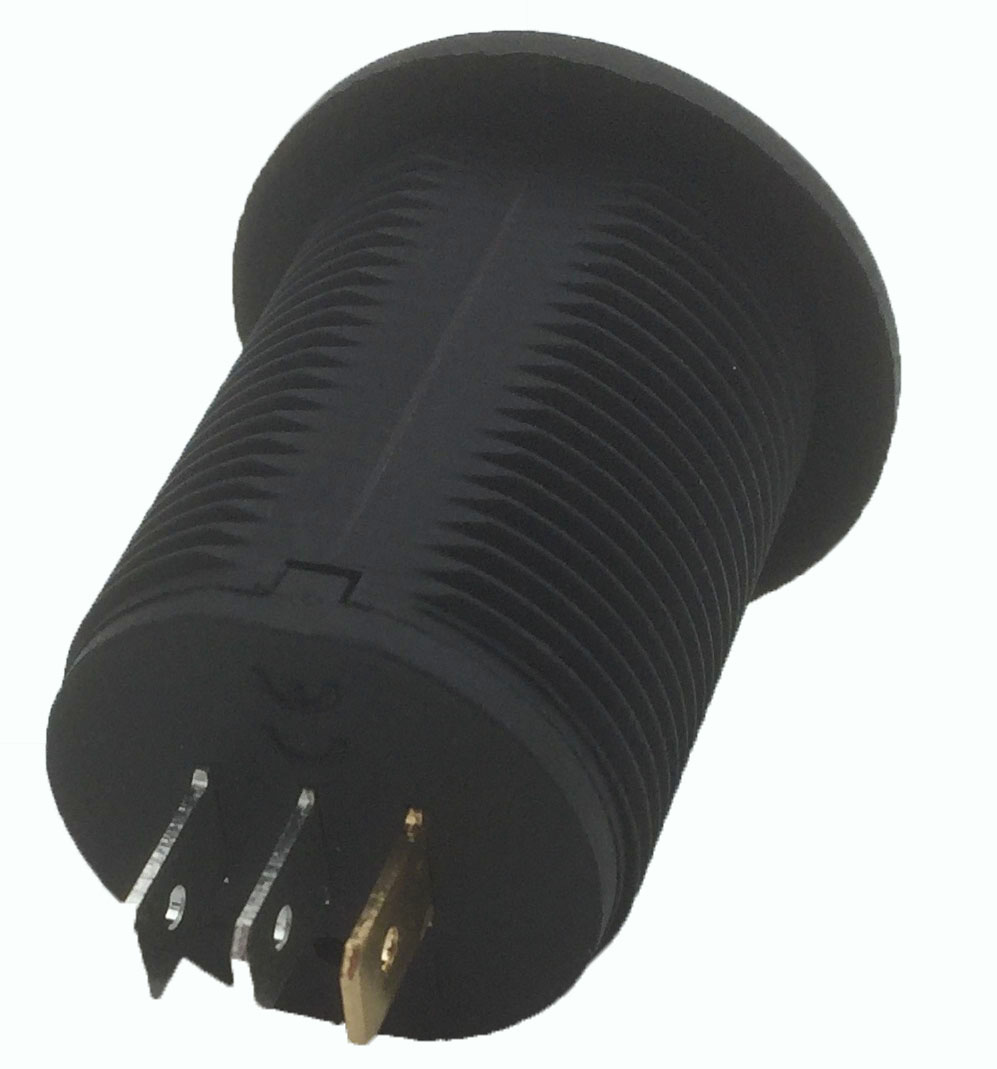

What is the small male connector underneath for?
That spade terminal is for an optional remote crank or override wire. It can be used to automatically open the isolator while the starter is engaged, protecting the system from high current draw. It’s optional and not needed for normal operation.
How does the UTV-SBI-CM prevent overcharging of the main battery?
The isolator doesn’t regulate charging current — that’s handled by your vehicle’s alternator or regulator. It simply senses voltage: once the main battery reaches about 13.4 V, it connects the second battery so it can charge. When voltage drops, it disconnects to prevent drain.
